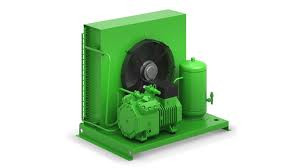

Bitzer LH84E/4EES-6Y-40S 400V Condensing Unit

Description

This Bitzer refrigeration unit is equipped with a semi-hermetic compressor with four cylinders, providing a displacement of 22.5 m³/h at 400V.

Electrical Power Input: 5.5 kW.

It is compatible with the following refrigerants: R407A/F, R404A, R507A, R448A, and R449A.

Components:

• Semi-hermetic compressor Bitzer Octagon 4EES-6Y
• Liquid receiver (9.6 L)
• Emerson dual pressure switch
• Air-cooled condenser: 14.5 kW capacity

The liquid separator and oil separator can be installed upon request, at an additional cost.

Also available in a version with tropicalized condenser.

Suitable for:

• Cold rooms up to 150 m³
• Freezer rooms of up to 80 m³.

Condition: New.

Warranty: 24 months.

We can provide installation and delivery of the unit for an additional fee.

The condensing unit is made up of a compressor, chassis, condenser, junction box, pressure switch, and liquid receiver, and it is installed outside the refrigerated room or application. This unit is a component of the refrigeration system and can only cool an enclosure or application in combination with the evaporator (air cooler, plate heat exchanger, etc.), the expansion valve, filter, and control panel.
