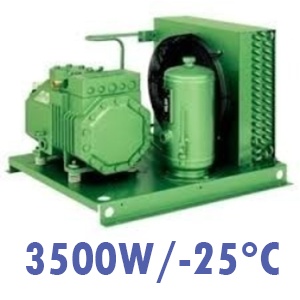

Bitzer Condensing Unit LH33 3500W/-25°C

Description

The Bitzer condensing unit is equipped with a semi-hermetic compressor with 2 cylinders, a displacement of 15 m³/h, and operates on 400V.

Electrical Power Consumption: 2.5 kW

Compatible with refrigerants: R404A and R507A.

Components:

• Bitzer Octagon semi-hermetic compressor, model 2CC-3.2Y
• 6 L liquid receiver
• Danfoss differential pressure switch

The liquid separator and oil separator are available upon request at an additional cost.

Air-cooled condenser with a capacity of 7,500 W.

Also available in a version with tropicalized condenser.

Suitable for: cold rooms up to 55 m³ or freezer rooms up to 35 m³.

Condition: New.

Warranty: 24 months.

Installation and delivery services are available at an additional cost.

The condensing unit includes a compressor, chassis, condenser, connection box, pressure switch, and liquid receiver, all of which are mounted outside the refrigerated space or application. This unit is part of the refrigeration system and can only provide cooling when combined with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
