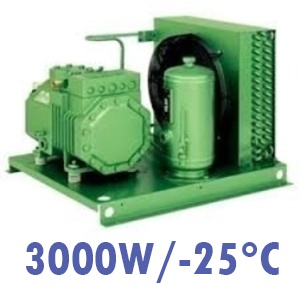

Bitzer Condensing Unit LH33 3000W/-25°C

Description

This Bitzer condensing unit is equipped with a semi-hermetic compressor, featuring 2 cylinders, a displacement of 13 m³/h, and operates on 400V.

Electrical Power Consumption: 2.5 kW

Refrigerants: R404A, R507A.

Components:

• Bitzer Octagon semi-hermetic compressor 2CC-3.2Y
• 3 L liquid receiver
• Danfoss differential pressure switch

The liquid separator and oil separator can be installed upon request and at an additional cost.

Air-cooled condenser: 7,500 W.

Also available in a version with tropicalized condenser.

Suitable for:

• Refrigeration rooms up to 60 m³
• Freezer rooms up to 30 m³

Condition: New.

Warranty: 24 months.

Installation and delivery of the unit are available at an additional cost.

The condensing unit consists of a compressor, chassis, condenser, connection box, pressure switch, and liquid receiver, and it is mounted outside the refrigeration application being served. This unit is part of a refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, ensures the cooling of a room or application.
