Negative Temperature Condensing Unit 25 kW Bitzer

Description

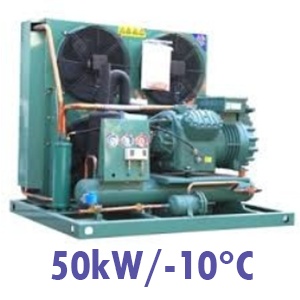

This unit features a 23 HP capacity with a refrigeration power of 50 kW at -10°C or 25 kW at -25°C. It is equipped with a semi-hermetic Bitzer compressor with four cylinders, a differential pressure switch, a 20-liter liquid receiver, and a 60 kW air-cooled condenser.

It is suitable for operation within an evaporation temperature range of -45°C to 0°C.

Upon request, it can be supplied with an additional fan for cylinder head precooling.

Power Supply: 400V, 50Hz

Input: 31 A.

Displacement: 85 m³/h.

It operates with refrigerants R404A, R507, R449A, R134A, R513A, R407A/F, R422D, and R1234yf.

Condition: New.

Warranty: 24 months.

We can provide delivery and installation services for an additional cost of 4,950 RON.

The price does not include the installation of other necessary accessories and materials.

This unit can serve refrigerated storage warehouses of up to 600 m³ or freezer rooms of up to 300 m³.

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application. This unit is a component of the refrigeration system and can only effectively cool a facility or application when combined with an evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
