Semi-Hermetic Condensing Unit Bitzer LH104/4FC-5.2Y
Description
This condensing unit is equipped with a semi-hermetic compressor rated at 6 HP with four cylinders.
Suitable for:

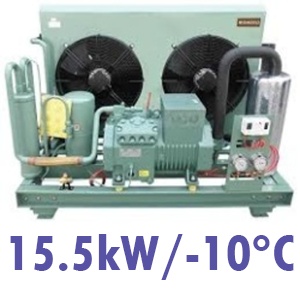

- Refrigeration applications (15,500 W / -10°C)

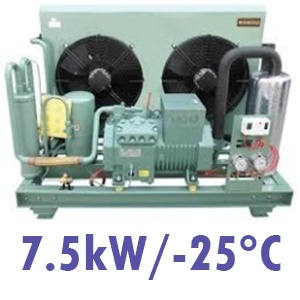

- Freezing applications (7,500 W / -25°C).
It includes a refrigeration condenser rated at 21 kW with two fans (D450 mm), an airflow rate of 9,500 m³/h, a differential pressure switch, a 6 liter liquid receiver, and anti-vibration buffers and connections. It can be equipped with an oil separator and a liquid separator upon request.
The unit is compatible with refrigerants from the following categories: R422D, R407A, R407C, R407F, R404A, and R507.
Specifications:
- Supply Voltage: 400V / 50Hz
- Airflow Rate: 28 m³/h
- Maximum Electrical Power Consumption: 4,000 W
Condition: New.
We can provide installation and delivery services for an additional cost of 2,500 RON.
Warranty: 24 months.
The condensing unit consists of a compressor, frame, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated room or application. This unit is a component of the refrigeration system and can only effectively cool a space or application when combined with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
