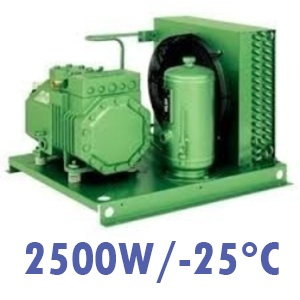

Bitzer Condensing Unit LH33 2500W / -25°C

Description

The Bitzer LH33 condensing unit is equipped with a semi-hermetic refrigeration compressor featuring two cylinders.

Power Supply: 400V, 50Hz

Airflow Rate: 12 m³/h

Electrical Power Consumption: 2.25 kW

The condensing unit operates with the following refrigerants: R404A, R507A.

Components:

• Bitzer Octagon 2GC-2.2Y semi-hermetic compressor
• Liquid receiver: 5.6 L
• Danfoss differential pressure switch
• Air-cooled condenser: 5,000 W

Upon request, the unit can be equipped with an oil separator.

Also available in a version with tropicalized condenser.

Suitable for:

• Cold rooms up to 35 cubic meters
• Freezer rooms up to 20 cubic meters

Condition: New

Warranty: 24 months

We can provide installation and delivery services at an additional cost.

The condensing unit consists of a compressor, frame, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside a refrigerated room or application. This unit is a component of the refrigeration system and can only cool a space or application when used together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
