Teko DP2-102/6 Multi-Compressor Unit
Description
We make custom multi-compressor condensing units for cooling, freezing, or combined applications with variable flow rates and cooling capacities suitable for supplying refrigeration chains such as supermarkets or cold storage warehouses. These units feature complex automation, consumption management, quiet operation, and they are reliable. Cooling capacities range from 20 to 250 kW. We offer up to 36 months of warranty and periodic maintenance check-ups are included.
Advantages:
- Reduced electrical energy consumption for both the refrigeration chain and the climate control system serving the premises.
- Removing the units that serve the refrigeration equipment from inside the facility which allows for a more efficient layout.
- Lower ambient noise levels.
- The option to separate the condenser unit from the main unit, so that only the condenser will be installed outside the facility.
Electrical Power: 20 kW / 400 V
Cooling Capacity: 59,000 W at -10ºC, 6,000 W at -25ºC

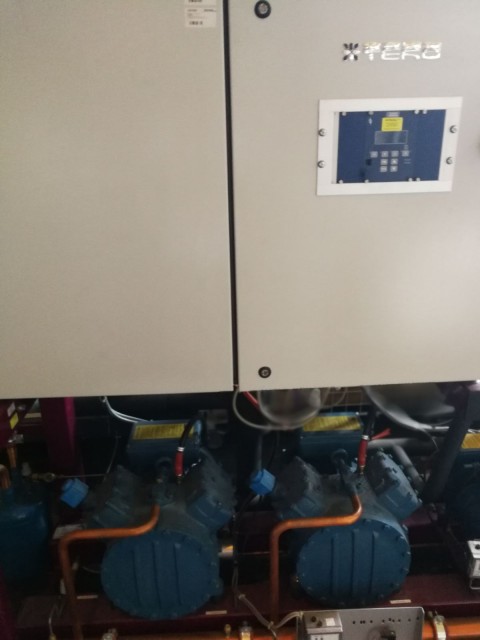

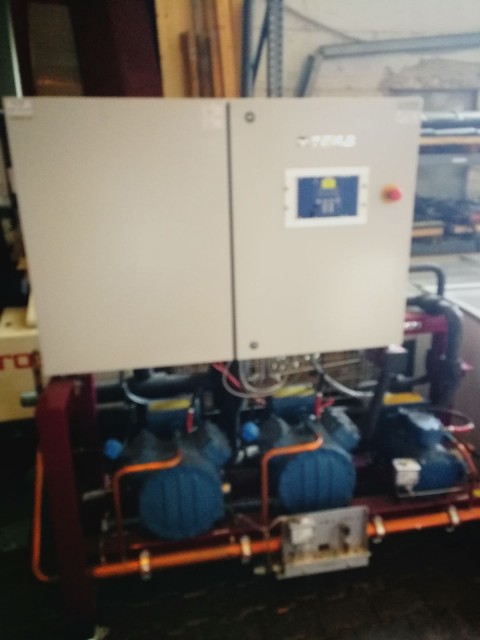

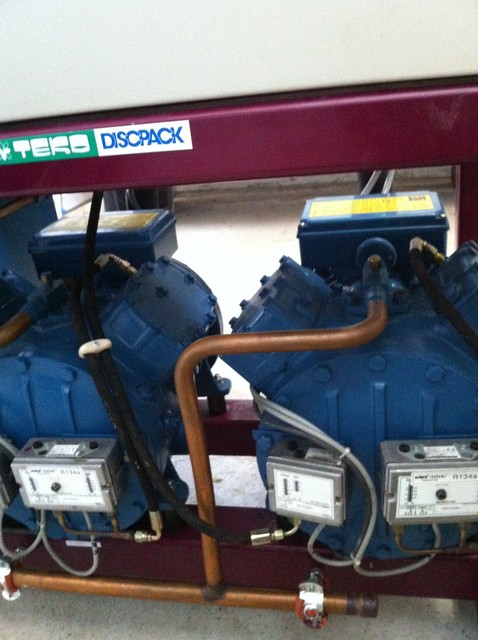

Equipped with two semi-hermetic four-cylinder compressors, Frascold model S7_56Y, with a capacity of 29,500 W at -10ºC, and one freezing compressor with a cooling capacity of 6,000 W at -25ºC evaporation, differential pressure switches, a 45-liter liquid receiver, a liquid separator, an anti-vibration frame, an automation control panel, and an 85 kW condenser.
Warranty: 24 months.
We provide installation services at an additional cost. Delivery is not included in the price.
