Tecumseh TAJN9510 400V | 1.35 kW Condensing Unit
Description

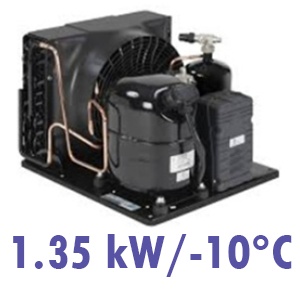

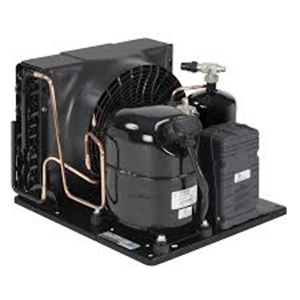

Tecumseh TAJN9510 refrigeration condensing unit.
Cooling capacity: 1,250 kcal/h at −10°C evaporating temperature (1,350 W)
Electrical power input: 850 W
Rated operating current: 4 A
Refrigerants: R407A, R422D, R404A, R448A, R449A
Oil: Synthetic POE-32
The condensing unit is equipped with a dual pressure switch and a 2 L receiver.
Upon request, a liquid separator with heat recovery can be installed.
Suitable for:
- Freezer rooms at −16 to −18°C, with a maximum volume of 6 m³
- Cold rooms at +2 to +6°C, with a maximum volume of 15 m³
High-capacity condenser for efficient heat dissipation.
Low noise level: 48 dB
Condition: New
Warranty: 24 months, subject to having a commissioning report issued by the refrigeration technician who carries out the installation.
Installation (1,950 RON + VAT) and product delivery are available for an additional charge.
The condensing unit is installed outside the refrigerated enclosure or application and includes the chassis, compressor, condenser, electrical connection box, pressure switch, and receiver. It is a component of the refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, makes up the complete system required for cooling.
