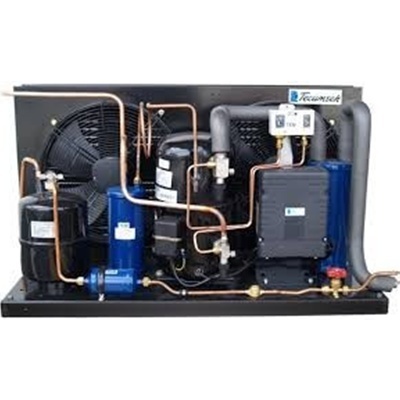

Tecumseh TAG2522 400V Refrigeration Condensing Unit
Description
Tecumseh refrigeration condensing unit.
Equipped with a TAG2522 compressor for commercial and industrial refrigeration applications.
Cooling capacities:

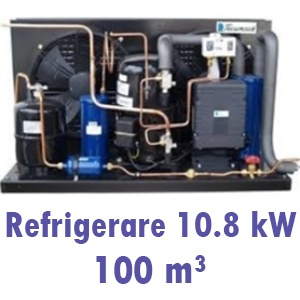

- Refrigeration applications: 10.8 kW

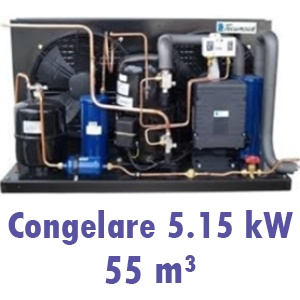

- Freezing applications: 5.15 kW
Applications:
- Refrigeration systems: 100 m³
- Freezing systems: 55 m³
Optional equipment: Fan speed controller (coil temperature dependent) and a liquid separator.
Standard equipment of the condensing unit:
- Differential pressure switch
- 6-liter receiver
- Electrical connection box
Power supply: 400 V, 50 Hz
Operating current: 9 A
Refrigerant: R404A, R507
Condition: New
Warranty: 24 months, subject to having a commissioning report issued by the refrigeration technician who carries out the installation.
Installation and product delivery are available for an additional charge.
The condensing unit is installed outside the refrigerated enclosure or application and includes the chassis, compressor, condenser, electrical connection box, pressure switch, and receiver. It is a component of the refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, makes up the complete system required for cooling.
