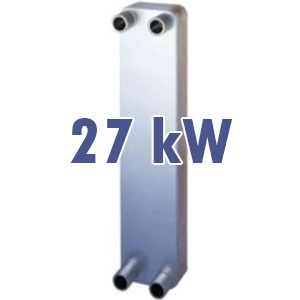

Stainless Steel Plate Heat Exchanger 27 kW

Description

12 HP Heat exchanger, Model B25THx40/1P-SC-M 2x1"&22U+2x1.

Connections:

• Refrigerant Lines: Two circuits, 22 mm each
• Water Line: One circuit, 1 inch

Maximum Flow Rate: 9 m³/h

Heat Transfer Surface Area: 2 m²

Operating Pressure: 4.0 MPa

Can operate as an evaporator or as a condenser.

Condition: New.

Warranty: 24 months.

Installation available at an additional cost.
