Sporlan Compact Suction Filter 1 + 1/8

Description

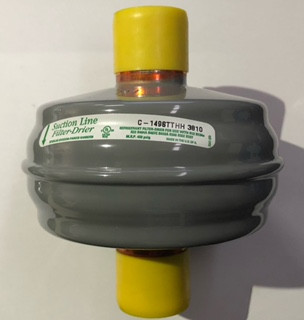

Suction filter drier, Sporlan model C-149STTHH, designed to eliminate moisture, acid, and impurities found in refrigeration or air conditioning lines.

This compact filter also contains activated carbon in addition to other types of desiccants, making it ideal for capturing impurities. Therefore, this type of filter is recommended when replacing a refrigeration compressor.

The suction filter is equipped with valves at both ends to monitor pressure differentials before and after filtration. If significant differences are detected, the filter should be replaced with a new one to restore the system to the normal parameters and continue the filtration process.

Diameter: 113 mm

Length: 125 mm

Filter connection: 1 + 1/8" or 28 mm.

Minimum temperature: -45°C.

Effective against moisture, acid, and impurities.

Sporlan quality. Made in the USA.
