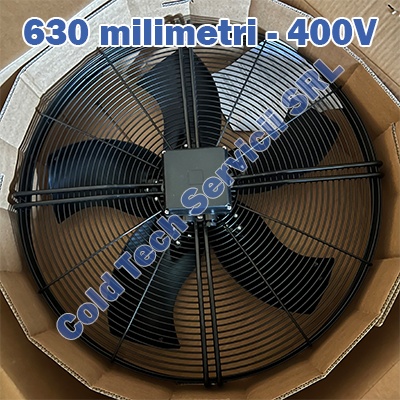

Soler & Palau 630 mm Three-Phase Axial Fan
RON 2,550.00
(VAT included.)
RON 2,684.33
Delivery costs are not included.
How can we help you?
SKU
SOLPAL6P63CM
Categories
Weight
21 kg
Brand
Fan Blade Diameter
630mm
Axial Fan Type
Suction
Description
Soler & Palau three-phase axial suction fan, designed for refrigeration and ventilation applications.
Airflow rate: 10,000 m³/h.
Blade diameter: 630 mm.
4-pole fan motor. The fan’s rotation direction can be reversed by following the electrical wiring diagram.
Power supply: 380V, 50 Hz
Maximum electrical current: 2.2 A
Operating temperature range: -40°C to +70°C.
Applications:
- Freezing tunnels
- Blast chillers
Model: HRT/4-630/25-BPN
The fan can be used as a replacement part for chillers, condensing units, and air coolers, or it can be integrated into a new refrigeration system setup.

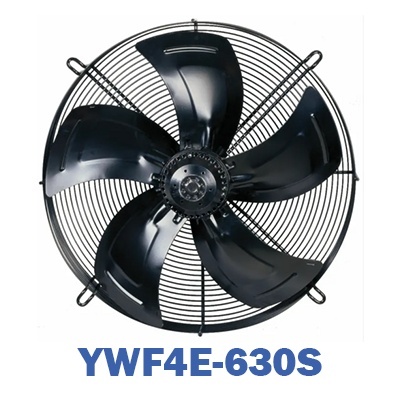

Compatible as a replacement for YWF4E-630S and YWF6E-630S fans.
