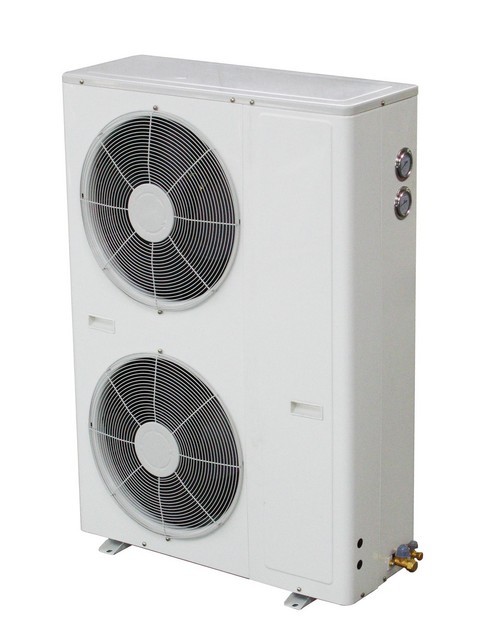

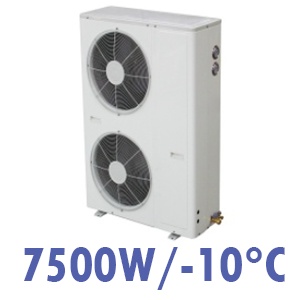

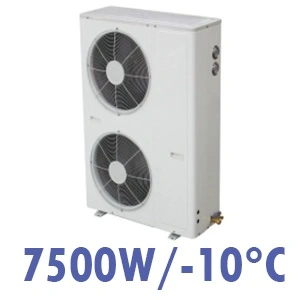

Silent Condensing Unit 7500W, -10°C

Description

Suitable for:

• Cold rooms up to 80 m³
• Negative temperature rooms up to 40 m³.

Equipped with a Copeland Scroll 4HP compressor, model ZB 30 / R404A / 400V/ 50Hz, or Danfoss MLZ030. Input: 9 A.

Includes a differential pressure switch, 25A contactor, overcurrent protection, phase loss and reverse phase protection, and anti-vibration buffers.

Enhanced condensation, airflow rate of 2 x 4500 m³/h, quiet operation below 50dB.

Condition: Refurbished.

Installation available at an additional cost.

Warranty: 12 months.

The condensing unit is made up of a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is mounted outside the refrigerated space or application it serves. This unit is a component of the refrigeration system and, only when combined with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and automation panel, can it cool a chamber or application.
