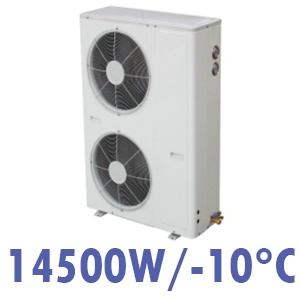

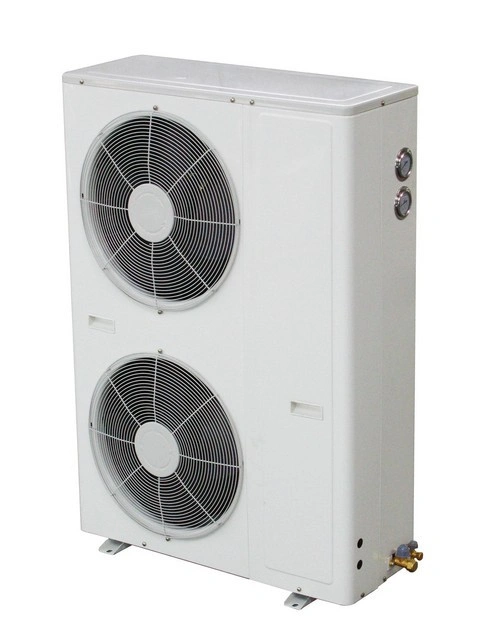

Silent Cased Condensing Unit 14,500W, -10°C

Description

This unit is suitable for:

• Cold rooms up to 150 m³
• Freezer rooms up to 65 m³.

Equipped with a Copeland or Danfoss Scroll 6HP compressor, model ZB45 (MLZ045), compatible with refrigerants R404A, powered at 400V/50Hz. Input: 12.6A.

Includes a differential pressure switch, 25A contactor, overcurrent protection, phase failure or reversal protection, and anti-vibration buffers.

Enhanced condensation, with fan airflow rate of 2 x 6500 m³/h, operating quietly at under 50 dB.

Available upon request: liquid separator or heat recovery exchanger, allowing for extremely low temperatures inside the space or system.

Installation is available at an additional cost.

Warranty: 36 months.

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space. This unit is part of a refrigeration system and only achieves proper cooling when combined with an evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
