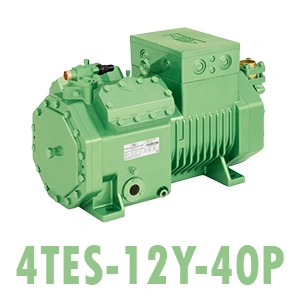

Semi-Hermetic Reciprocating Compressor | Bitzer 4TES-12Y-40P 400V
RON 15,253.96
(VAT included.)
Delivery costs are not included.
How can we help you?
Description
The Bitzer 4TES-12Y-40P is a semi-hermetic reciprocating refrigeration compressor designed for commercial and industrial refrigeration and air conditioning systems.
Power supply: 380–420 V, three-phase, 50 Hz
Number of cylinders: 4
Displacement: 41.33 m³/h at 50 Hz
Maximum power input: 14 kW
Maximum operating current: 25.1 A
Starting current: 69 A (Y) / 113 A (YY)
Maximum pressure: 19 bar suction / 32 bar discharge
Suction connection: 1⅜" (35 mm)
Discharge connection: 1⅛" (28 mm)
Protection rating: IP66
Refrigerant: R404A
Cooling capacity: 23.1 kW at −10°C and 11.46 kW at −25°C
Suitable for:
- cold rooms up to 250 m³
- freezer rooms up to 120 m³
Condition: New
Warranty: 24 months, subject to having a commissioning report issued by the refrigeration technician who carries out the installation.
