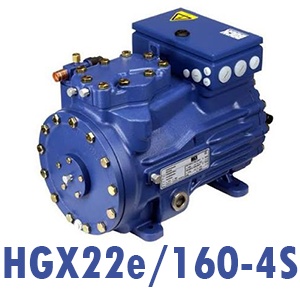

Semi-Hermetic GEA SHGX 22/160-4S Compressor

Description

Semi-hermetic compressor with 2 cylinders, 4 HP

Max. electrical input: 3 kW, 400V/50Hz.

Displacement: 13.7 m³/h,

Cooling capacity: 3,950 W at -25°C or 8,500 W at -10°C at a condensing temperature of 40°C.

Compatible with refrigerants: R134A, R407A/C/F, R422D, R404A, R507.

Discharge connection size: 16 mm

Suction connection size: 22 mm.

Rated Operating Current: 7.5A, Y configuration.

Suitable for: freezer rooms up to 45 m³, refrigeration rooms up to 100 m³.

Condition: New.

Made in Germany.

Warranty: 24 months subject to having a commissioning report filled out by a qualified technician.

For technical details, visit: https://s.cdnmpro.com/129524980/content/13901_Bock%20HGX5%20830-4%20%26%20HGX6%201240-4%20Specifications.pdf
