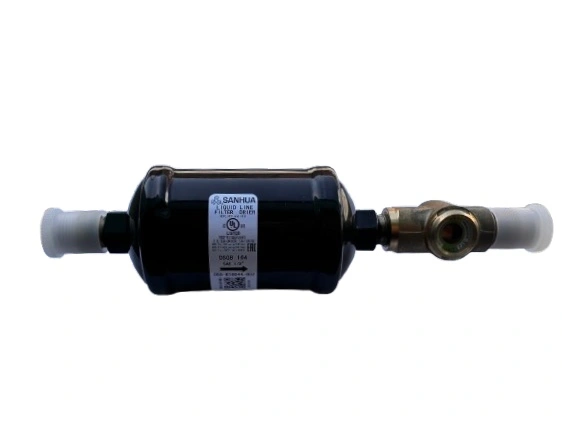

Sanhua DSGB 164 Refrigerant Filter Drier with Sight Glass
RON 220.00
(VAT included.)
Delivery costs are not included.
How can we help you?
Description
Sanhua DSG-B16044-002 (DSGB 164 series) is a liquid line filter drier with an integrated sight glass, used in refrigeration systems to absorb moisture and filter impurities. The sight glass allows the refrigerant condition and moisture level in the circuit to be monitored.
Nominal volume: 262 cm³ / 16 in³
Connection: 1/2" SAE flare
Desiccant core composition: 100% 3Å molecular sieve
Filtration rating: 20 μm
Maximum operating pressure: 45 bar
Refrigerant temperature range: -30°C to +80°C
Ambient temperature range: -30°C to +55°C
Flow direction: Unidirectional
