Refrigeration System for a 20 Cubic Meter Cold Room

Description

The system is designed to maintain a temperature of 0...6°C within the storage area.

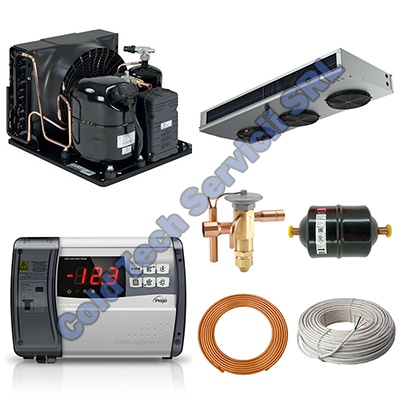

Components:

Air Cooler

• Minimum cooling capacity: 2000 W at -10°C evaporation temperature
• Dimensions: 600 x 500 x 450 mm
• Equipped with an electric fan motor with a 315 mm blade diameter
• Power supply: 230V / 50 Hz, 1440 RPM, EBM or a similar model
• Thermostatic expansion valve with Danfoss equalization, No. 2 orifice
• Ceiling mounting studs: 150 mm
• The air cooler includes defrost heating elements with a minimum power output of 1800 W.

Automation Control Panel

• Available in either metal or ABS (upon request)
• LAE Electronic or Pego 200 Expert model
• Equipped with 16 A relays/contactors
• Features overvoltage, overcurrent, phase loss, and phase sequence protection (for three-phase units)
• Includes two NTC sensors for monitoring room and coil temperature (defrost and ventilation control).

Condensing Unit

• Cooling capacity: Minimum 2000 W at -10°C evaporation temperature
• Equipped with a hermetic compressor
• Includes an oversized air-cooled condenser, minimum a 2-liter liquid receiver, differential pressure switch (at least low-pressure control), 250 g filter drier with 3/8" connections, and an electrical connection box
• Available in both single-phase and three-phase versions
• Compressor brands: Tecumseh, Aspera, Bitzer
• Energy efficiency class: A
• Maximum power consumption: 1200 W.

Refrigeration Line:

• 4 meters of copper pipes 3/8" and 5/8" (10 mm and 15 mm)
• Includes suction line insulation, drain pipe, insulation tape, electrical cables, and flare nuts.

Condition: New.

Price does not include installation, start-up, or tests.

Installation, start-up, and testing cost: 4,250 RON + VAT.

This system is suitable for cold rooms between 15 and 20 cubic meters.

System warranty: 24 months.

Also available with a quiet, enclosed condensing unit for 15,950 RON + VAT.
