Refrigeration System for a 10 Cubic Meter Freezer Room

Description

Refrigeration system for freezer rooms with a volume of 5 to 10 cubic meters.

Achievable temperature inside the room: -18 to -20°C.

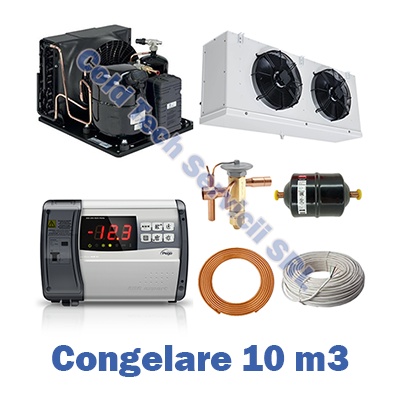

Components:

1. Ventilated Air Cooler with a minimum cooling capacity of 1150 W at an evaporation temperature of -25°C. Dimensions: 600 x 500 x 450 mm. Equipped with an electric fan motor with a 315 mm blade diameter, powered by a 230V / 50 Hz supply, with a rotation speed of 1440 RPM. The fan model is S&P or a similar one. Includes a Sporlan thermostatic expansion valve with a No.2 orifice size and 150 mm ceiling-mounting bolts. The air cooler is equipped with three defrost heating elements, each with a minimum power output of 1000 W.

2. Metal or ABS (upon request) control panel featuring an Eliwell controller from the IDplus 9xx series. Equipped with 16 A relays/contactors, overvoltage protection, overcurrent protection, phase loss protection, and phase sequence monitoring (for three-phase units). Contains two NTC sensors for monitoring room and coil temperature (for defrost and ventilation control).

3. Condensing Unit equipped with a hermetic compressor with a minimum cooling capacity of 1150 W at an evaporation temperature of -25°C. Includes an air-cooled condenser, a minimum 3-liter receiver, a differential pressure switch, a 250 g filter drier with 3/8" connections, and an electrical junction box. Available in both single-phase and three-phase versions. Compressor types include Tecumseh, Aspera, and Bitzer. Energy efficiency class A, with a maximum power consumption of 1500 W. Upon request and at an additional cost, it can be equipped with a liquid separator, oil separator, heat recovery unit, or can be delivered in a silent, encased version.

4. 4m Refrigeration Line, copper pipes 3/8" and 5/8" (10 mm and 15 mm), insulated suction pipe, drain tube, PVC jacketing, electrical cables, flare nuts, and insulation for the drain tube.

Condition: New.

Installation, startup, and tests are not included in the price. Cost for installation, start-up, and testing: 4,000 RON + VAT.

System warranty: 24 months.

Also available with a silent, enclosed condensing unit for only 16,700 RON + VAT.
