Refrigeration System for 50 Cubic Meters Cold Room

Description

This installation is intended for a refrigeration room with a maximum internal volume of up to 50 cubic meters.

Achievable temperature range inside the room : 0...+6°C.

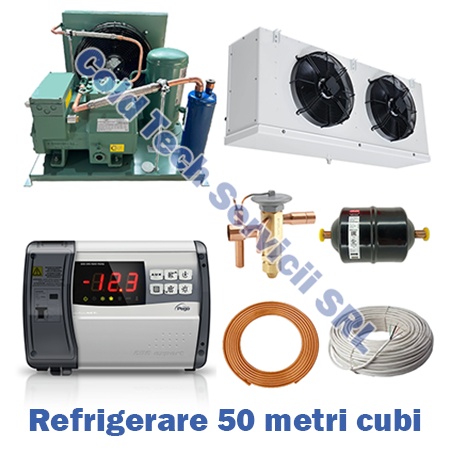

Components :

Air cooler:

• Cooling Capacity: Minimum 4850 W at -10°C.
• Dimensions: 1150 x 550 x 500 mm.
• Equipped with two electric fan motors with a 315 mm blade diameter.
• Power supply: 230V / 50 Hz, 1440 RPM.
• Model: EBM.
• Thermostatic expansion valve with Danfoss equalization, with a 4-ton orifice size and 180 mm mounting studs for ceiling attachment.
• The air cooler is equipped with three defrost heating elements, each with a minimum power output of 1250 W.

Automation Control Panel:

• Material: Metal or ABS (upon request).
• Brand: Eliwell, featuring a controller from the IDplus 9xx or Pego 300 Expert series.
• Equipped with 16 A relays/contactors, overvoltage, overcurrent, phase loss, and phase sequence protection (for three-phase units).
• Includes two NTC sensors for room temperature and coil (defrost and ventilation control).

Condensing Unit:

• Equipped with a Copeland Scroll encapsulated compressor with a minimum cooling capacity of 4750 W at -10°C evaporating temperature.
• Features an air-cooled condenser, minimum 3-liter receiver capacity, differential pressure switch (for high and low-pressure control), and a 250 g drier filter with a 3/8" connection.
• Includes an electrical connections box.
• Available in single-phase or three-phase configurations.
• Alternative compressor brands: Tecumseh, Hitachi, Copeland, Bock, Bitzer, Dorin.
• Energy class: A, maximum electrical power input: 2500 W.

Refrigeration Line:

• Length: 4 m.
• Copper pipes: 3/8" and 3/4" (10 and 19 mm).
• Insulation for the suction line, drain tube, jacketing, electrical cables, flare nuts, and insulation for the drain tube.

Condition: New.

This system is suitable for cold rooms with a capacity ranging from 40 to 55 cubic meters.

Installation, commissioning, and tests available at an additional cost: 5250 RON + VAT.

Also available with a quiet, encased condensing unit for only 22950 RON + VAT.

System warranty: 24 months.

Also available with a second-hand compressor for only 13500 RON + VAT, with a 12-month warranty, subject to stock availability.

Depending on stock availability, the brands mentioned in the description may be substituted with other products of similar origin.
