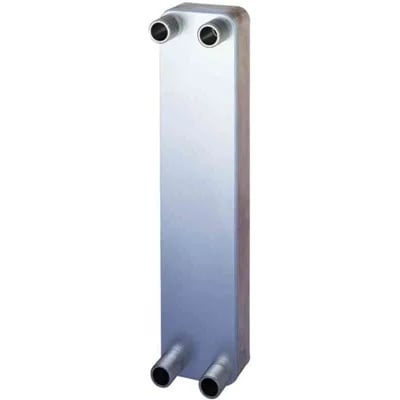

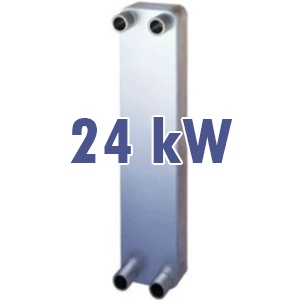

Refrigerant-to-Water Plate Heat Exchanger B25THx40/1P-SC-M 24kW
RON 2,485.00
(VAT included.)
Delivery costs are not included.
How can we help you?
Description
SWEP heat exchanger (P/N 0107204.0-X) designed for refrigerant-to-water or refrigerant-to-refrigerant heat transfer.
Number of plates: 40
Material: 316/316L stainless steel plates, copper brazing
Circuit configuration: 1P (single circuit)
Total heat transfer surface area: 2.4 m²
Maximum water flow rate: 9 m³/h
Connections:
- Refrigerant: 22 mm (22U), solder connection, 316/316L stainless steel
- Water: 1" male connection + 22 mm (22U), solder connection, 316/316L stainless steel
Connection height: 20 mm
Condition: New
Warranty: 24 months.
Can operate as an evaporator or condenser in cooling systems using a secondary heat-transfer fluid.
Installation services available for an additional cost.
