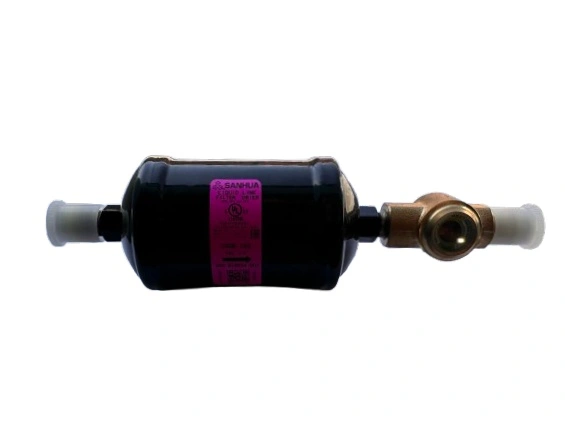

Refrigerant Filter Drier with Sight Glass 10mm Flare | Sanhua DSGB 163
RON 176.00
(VAT included.)
Delivery costs are not included.
How can we help you?
Description
Sanhua DSG-B16034-002 (DSGB 163 series) is a liquid line filter drier with an integrated sight glass, designed to absorb moisture and filter impurities from the refrigeration circuit. The sight glass allows the refrigerant flow and moisture level to be checked.
Connection: 3/8" SAE flare
Nominal volume: 262 cm³ / 16 in³
Desiccant core composition: 100% 3Å molecular sieve
Filtration rating: 20 μm
Maximum operating pressure: 45 bar
Refrigerant temperature range: -30°C to +80°C
Ambient temperature range: -30°C to +55°C
Flow direction: Unidirectional
