Pressure Transmitter Danfoss AKS 2050

Description

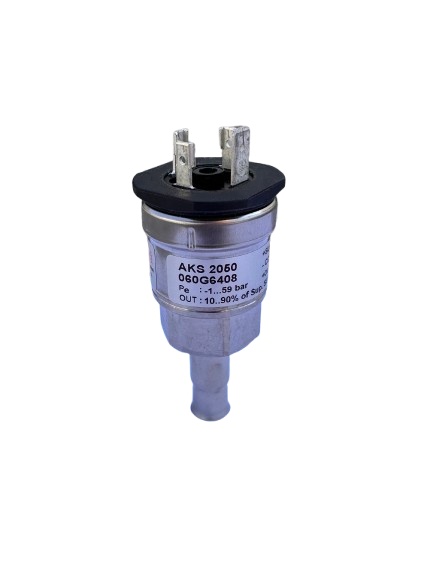

Danfoss AKS 2050 (P/N 060G6408) is a compact pressure transmitter designed for measuring pressure and monitoring in refrigeration and HVAC systems.

Pressure range: -1 to 59 bar

Power supply: 4.75–8.0 V DC

Output signal: ratiometric, 10–90% of the supply voltage

Pressure connection: 3/8" solder connection, ODF

Protection rating: IP65

Refrigerant temperature range: -40 to +85°C

Ambient temperature range: -40°C to +85°C

Compensated temperature range: -30°C to +40°C

Electrical connection: Angular, 4-pin, EN 175301-803-A

Pin 1: Supply (+)

Pin 2: Common / −

Pin 3: Output (+)

 Maximum operating pressure: 100 bar
