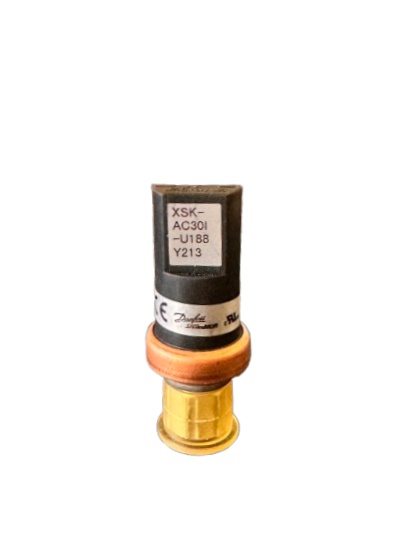

Pressure Sensor Danfoss XSK-AC30l
RON 500.00
(VAT included.)
Delivery costs are not included.
How can we help you?
Description
The XSK-AC30I-U188 is a pressure sensor designed for refrigeration and air conditioning systems. It measures refrigerant pressure and sends a 4–20 mA signal to the control system. It is used for monitoring and controlling pressure in refrigeration and HVAC applications.
Pressure range: 0–30 bar
Output signal: 4–20 mA
Accuracy: ±3% FS
Refrigerants: R134a, R404A, R407C, R410A
Protection rating: IP66
Power supply: 11–28 V DC
Maximum operating pressure: 38.5 bar
Electrical connection: Molex
Ambient temperature range: -20°C to +70°C
Pressure connection: 7/16"-20 UNF, 1/4" female connection with Schrader valve depressor
