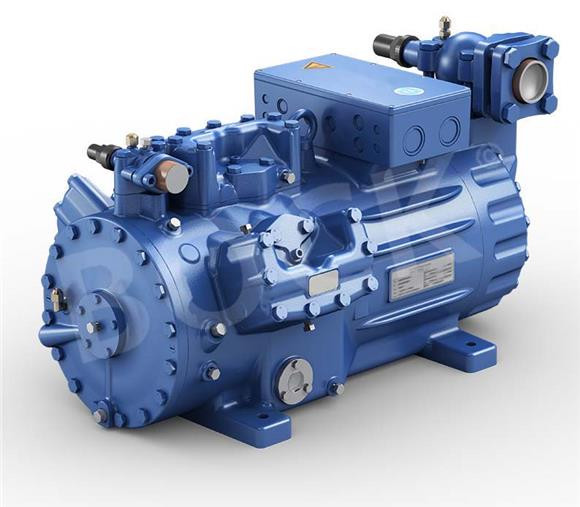

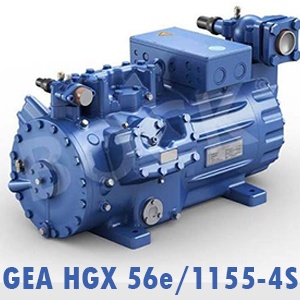

GEA HGX 56e/1155-4S Semi-Hermetic Compressor

Description

Semi-hermetic refrigeration compressor with 6 cylinders, 35 HP, maximum power consumption: 33.3 kW, 400V/50Hz.

Model: HGX 56e/1155-4S.

Displacement: 100.4 m³/h

Freezing capacity: 29,000 W / -25°C

Refrigeration capacity: 56,700 W / -10°C

Compatible with refrigerants R134A, R407A/C/F, R422D, R404A, R507, R448A, R449A, R452A.

Discharge connection size: 35 mm

Suction connection size: 54 mm

Maximum operating current: 58.3 A, Y/YY.

Suitable for: Freezer warehouses up to 450 m³, refrigeration warehouses up to 800 m³.

Condition: New.

Made in Germany.

Warranty: 24 months subject to having a commissioning report filled out by a qualified technician.

Technical specifications and energy efficiency of the compressor.
