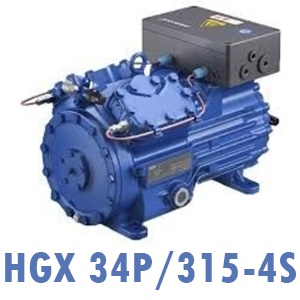

GEA HGX 34P/315-4S Semi-Hermetic Compressor

Description

This semi-hermetic compressor features 4 cylinders and a 7.5 HP motor power, with a maximum input electrical power of 5.5 kW at 400V/50Hz.

Displacement: 31.5 m³/h

Cooling Capacity: 8,500 W at -25°C or 17,500 W at -10°C at a condensing temperature of 40°C.

Compatible with refrigerants R134A, R407A/C/F, R422D, R404A, and R507.

Connection sizes:

• Discharge Port: 22 mm
• Suction Port: 32 mm

Rated Operating Current: 13 A, Y/YY configuration.

Suitable for:

• Freezer rooms up to 90 m³
• Cold rooms up to 185 m³.

Condition: New.

Made in Germany.

Warranty: 24 months subject to having a commissioning report filled out by a qualified technician.

Technical datasheet: Bock compressors

Also available in a refurbished version with a 12-month warranty for only 10,700 RON + VAT.
