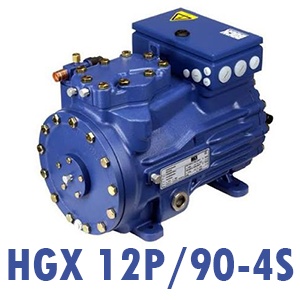

GEA HGX 12P/90-4S Semi-Hermetic Compressor
RON 6,718.18
(VAT included.)
Delivery costs are not included.
How can we help you?
SKU
NCBK1290
Categories
Weight
49 kg
Brand
Voltage
Three Phase 380V
Description
The GEA HGX 12P/90-4S is a semi-hermetic compressor with 2 cylinders, 3 HP, max. electrical input: 2.2 kW, 400V/50Hz
Displacement: 8 m³/h
Cooling capacity: 3,000 W at -25°C or 5,800 W at -10°C, at a condensing temperature of 40°C.
Compatible with refrigerants R134A, R407A/C/F, R422D, R404A, and R507.
Connections sizes:
- Discharge 12 mm
- Suction 16 mm.
Rated Operating Current: 6.5 A, Y.
Suitable for:
- Freezer rooms up to 35 m³
- Cold rooms up to 65 m³.
Condition: New.
Made in Germany.
Warranty: 24 months subject to having a commissioning report filled out by a qualified technician.
For technical details, visit: https://s.cdnmpro.com/129524980/content/13901_Bock%20HGX5%20830-4%20%26%20HGX6%201240-4%20Specifications.pdf
