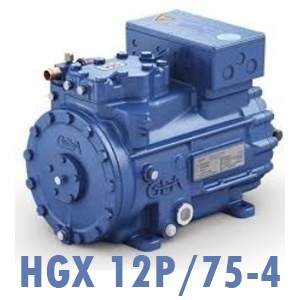

GEA HGX 12P/75-4 Semi-Hermetic Compressor

Description

This semi-hermetic compressor features 2 cylinders and has a 2 HP motor power, with a max. electrical input of 1.5 kW at 400V/50Hz.

Displacement: 6.7 m³/h

Cooling Capacity: 2,000 W at -25°C or 4,100 W at -10°C at a condensing temperature of 40°C.

It operates with refrigerants R134A, R407A/C/F, R422D, R404A, and R507.

Connection Sizes:

• Discharge: 12 mm
• Suction: 16 mm

Rated Operating Current: 4.1 A, Y.

Suitable for:

• Freezer rooms up to 25 m³
• Cold rooms up to 50 m³.

Condition: New.

Made in Germany.

Warranty: 24 months subject to having a commissioning report filled out by a qualified technician.

Specifications: https://s.cdnmpro.com/129524980/content/13901_Bock%20HGX5%20830-4%20%26%20HGX6%201240-4%20Specifications.pdf
