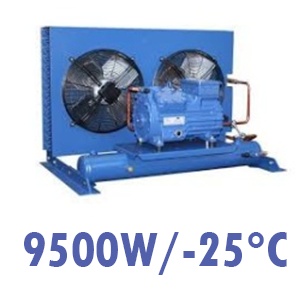

Gea Bock Condensing Unit 9500W/-25°C SHGX34e/380-4 SL

Description

The Gea Bock condensing unit is equipped with a semi-hermetic 4-cylinder compressor, providing a displacement of 38 m³/h at 400V.

It features superior energy efficiency, along with a durable and cost-effective compressor designed for a long operational life. According to the manufacturer's research and optimizations, it guarantees a minimum of 26% lower energy consumption compared to any compressor in its class with a similar cooling capacity.

Maximum power consumption: 6 kW

Refrigerants: R404A, R407A, R449A, R452A, and R507A.

Components:

• Semi-hermetic compressor Gea Bock HGX 34P/380-4S
• 10 L liquid receiver
• Johnson Controls dual pressure switch
• 24,500 W air-cooled condenser

It is also available in a version with tropicalized condensation.

The liquid separator and oil separator can be installed upon request and at an additional cost.

Suitable for: refrigeration rooms up to 250 m³ or freezer rooms up to 150 m³.

Condition: This product is made with new components.

Warranty: 24 months.

We can provide installation and delivery services at an additional cost.

The condensing unit includes the compressor, chassis, condenser, electrical connection box, pressure switch, and liquid receiver, and it is mounted outside the refrigerated room or application. This unit is an integral part of the refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, is capable of cooling a chamber or application.
