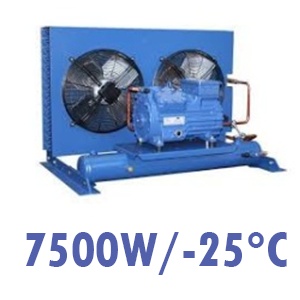

GEA Bock Condensing Unit 7500W/-25°C SHGX34e/315-4 SL

Description

This GEA Bock refrigeration unit is equipped with a semi-hermetic GEA Bock HGX34P/315-4S compressor with four cylinders.

Power supply: 400V, 50Hz.

Displacement: 31.5 m³/h.

Electrical Power Consumption: 5.1 kW.

The condensing unit is compatible with the following refrigerants: R404A, R407A, R449A, R452A, and R507A.

Components:

• Semi-hermetic GEA Bock compressor HGX34P/315-4S.
• 10 L liquid receiver.
• Dual pressure switch from Johnson Controls.
• Air-cooled condenser with 24,500 W capacity.

The liquid separator and oil separator are available upon request at an additional cost.

Also available in a version with tropicalized condenser.

Suitable for:

• Refrigeration rooms up to 225 m³.
• Freezer rooms up to 125 m³.

This unit offers superior energy efficiency, as it is equipped with a durable and cost-effective compressor designed for long-term reliability. Manufacturer’s research and optimizations guarantee at least 26% lower energy consumption compared to any compressor in the same class with an equivalent cooling capacity.

Product details:

• New components.
• 24-month warranty.

We provide installation and delivery services for the unit at an additional cost.

The condensing unit includes a compressor, chassis, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application. This unit is a component of the refrigeration system and can only achieve cooling when combined with an evaporator (air cooler, plate heat exchanger, etc.), an expansion valve, a filter, and a control panel.
