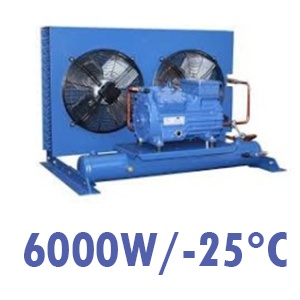

Gea Bock Condensing Unit 6000W / -25°C SHGX34e/255-4 SL

Description

The Gea Bock refrigeration unit is equipped with a semi-hermetic 4-cylinder compressor, with a displacement of 25.5 m³/h, operating at 400V.

Electrical Power Consumption: 4.25 kW.

Refrigerants: R404A, R407A, R449A, R452A, R507A.

Components:

• Semi-hermetic Gea Bock compressor HGX 34P/255-4
• 10-liter liquid receiver, dual Johnson Controls pressure switch
• The liquid separator and oil separator are available upon request at an additional cost.
• Air cooled condenser with a capacity of 19,500 W.

Also available in a version with tropicalized condenser.

Suitable for: Refrigeration rooms up to 200 m³ or freezer rooms up to 100 m³.

This unit offers superior energy efficiency, a durable and cost-effective compressor, and an extended service life, ensuring at least 26% reduced energy consumption compared to any other compressor in the same class with a similar cooling capacity, according to the manufacturer's research and optimizations.

Condition: Made with new components.

Warranty: 24 months.

We can provide delivery and installation services at an additional cost.

The condensing unit is made up of a compressor, chassis, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated area or application. This unit is an integral part of the refrigeration system and can only effectively cool a space or application when used in combination with an evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and automation panel.
