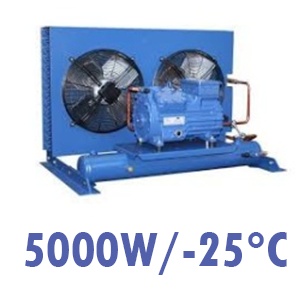

Gea Bock Condensing Unit 5000W/-25°C SHGX34e/215-4 SL

Description

The Gea Bock refrigeration unit is equipped with a semi-hermetic 4-cylinder compressor, featuring a displacement of 21.5 m³/h, and operates at 400V.

Maximum power consumption: 3.75 kW

Refrigerants: R404A, R407A, R449A, R452A, R507A.

This unit features superior energy efficiency, coupled with a durable and cost-effective compressor built for extended service life. According to the manufacturer's studies and optimizations, it ensures at least a 26% reduction in energy consumption compared to any other compressor in the same class with a similar cooling capacity.

Components:
• Semi-hermetic Gea Bock compressor HGX 34P/215-4
• 10-liter liquid receiver
• Dual pressure switch by Johnson Controls
• A liquid separator and oil separator can be installed upon request at an additional cost.
• Air-cooled condenser with a capacity of 17,500 W.

It is also available in a version with tropicalized condensation.

Suitable for :

• Refrigeration rooms up to 150 m³
• Freezer rooms up to 75 m³.

Condition: This product is made with entirely new components.

Warranty: 24 months.

We can provide delivery and installation services at an additional cost.

The condensing unit includes a compressor, chassis, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application. This unit is a critical part of the refrigeration system and, when used in conjunction with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, it can effectively cool a room or application.
