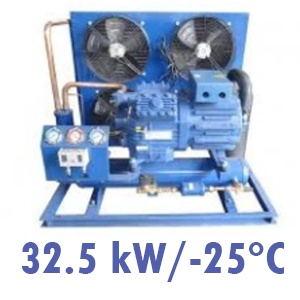

Gea Bock Condensing Unit 32.5 kW / -25°C

Description

The Gea Bock condensing unit features a semi-hermetic 6-cylinder compressor, with a displacement of 100 m³/h, operating at 400V.

This unit features superior efficiency class, along with a durable and cost-effective compressor designed for long-lasting performance. According to the manufacturer’s research and optimizations, it guarantees a minimum 25% lower electrical energy consumption when compared to any other compressor from the same efficiency class that has a similar cooling capacity.

Maximum electrical power consumption: 27 kW.

It can operate with refrigerants R404A, R407A, R449A, R452A, R507A, R422D, and R452A.

Components:

• Semi-hermetic compressor Gea Bock HGX 56e/1155-4S,
• 39 L liquid receiver,
• Dual pressure switch Johnson Controls,
• Air-cooled condenser rated at 75 kW DT15

Also available in a version with tropicalized condenser.

The liquid separator and oil separator can be installed upon request at an additional cost.

Suitable for:

•  Refrigeration rooms up to 700 m³
• Negative temperature rooms up to 400 m³

Condition: Made with new components.

Warranty: 24 months.

We can provide  installation and delivery services at an additional cost.

The condensing unit includes a compressor, chassis, condenser, junction box, pressure switch, and liquid receiver, and it is mounted outside the refrigerated space or application. This unit is a component of the refrigeration system and can only perform cooling in combination with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
