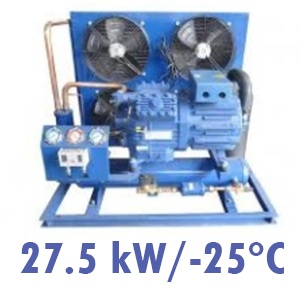

Gea Bock Condensing Unit 27.5 kW / -25°C

Description

The Gea Bock condensing unit is equipped with a semi-hermetic 4-cylinder compressor, with a displacement of 87 m³/h, 400V.

This unit features high energy efficiency, along with a durable and cost-effective compressor designed for long-lasting performance. According to the manufacturer’s research and optimizations, it guarantees a minimum of 25% lower electrical energy consumption when compared to any other compressor from the same efficiency class that has a similar cooling capacity.

Maximum electrical power consumption: 22 kW, and it can operate with refrigerants R404A, R407A, R449A, R452A, R507A, R452A, and R422D.

Components:

• Semi-hermetic compressor Gea Bock HGX 56e/995-4S
• Liquid receiver 34 L
• Johnson Controls Dual pressure switch
• Air-cooled condenser 65,000 W DT15

Also available in a version with tropicalized condenser.

The liquid separator and oil separator are installed upon request and at an additional cost.

Suitable for:

• Cold rooms up to 600 m³
• Freezer rooms up to 350 m³.

Condition: Made with new components.

Warranty: 24 months.

We can provide installation and delivery of the unit at an additional cost.

The refrigeration unit includes a compressor, chassis, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the cold room or refrigeration application. This unit is a component of the refrigeration system and can only achieve cooling of a room/application in conjunction with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
