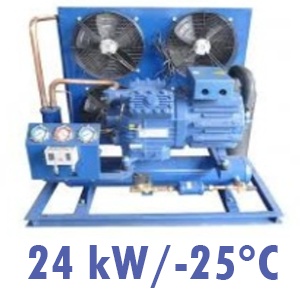

Gea Bock Condensing Unit 24 kW / -25°C
Description
The Gea Bock refrigeration unit is equipped with a semi-hermetic 4-cylinder compressor, with a displacement of 74 m³/h at 400V.
This unit offers superior energy efficiency and features a durable, cost-effective compressor with an extended lifespan. According to the manufacturer’s research and optimizations, it guarantees at least 25% lower energy consumption than any other compressor in the same class with a similar cooling capacity.
Maximum electrical power consumption is 17.5 kW, and it can operate with refrigerants R404A, R407A, R449A, R452A, R507A, R452A, and R422D.
Components:
- Semi-hermetic compressor Gea Bock HGX 56e/850-4S
- 29 L liquid receiver
- Johnson Controls Dual pressure switch
- Air-cooled condenser with a capacity of 57,000 W (DT15).
Also available in a version with tropicalized condensation.
The liquid separator and oil separator can be installed upon request at an additional cost.
Suitable for:
- Cold rooms up to 500 m³
- Freezer rooms up to 300 m³.
Condition: Made with new components.
Warranty: 24 months.
We can provide delivery and installation services for an additional fee.
The condensing unit is made up of a compressor, chassis, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigeration space or application. This unit is a component of the refrigeration system and can only cool a space/application when used in conjunction with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
