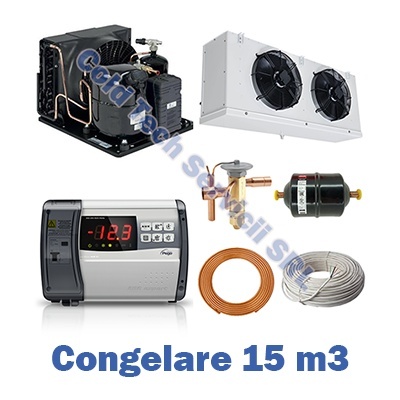

Freezing System for a 15 Cubic Meter Freezer Room

Description

Achievable temperature inside the room: -18 to -20°C

Components:

Ventilated Air Cooler

• Minimum cooling capacity: 1450 W at -25°C
• Dimensions: 600 x 500 x 450 mm
• Equipped with an electric fan motor with a 315 mm blade diameter
• Power supply: 230V / 50 Hz, 1440 RPM, EBM model
• Thermostatic expansion valve with Danfoss equalization, with 1 or 2 tons orifice sizes and 150 mm ceiling mounting bolts
• The air cooler is equipped with three defrost heating elements, each with a minimum power of 1000 W.

Control Panel

• Material: metal or ABS (upon request)
• Eliwell controller from the IDplus 9xx series
• Equipped with 16 A relays/contactors, protection elements for overvoltage, overcurrent, phase loss, and phase sequence (for three-phase units)
• Contains two NTC sensors for monitoring room temperature and defrost/ventilation control.

Condensing Unit

• Equipped with a hermetic compressor with a minimum cooling capacity of 1250 W at -25°C evaporation temperature
• Features an oversized air-cooled condenser, minimum 3-liter receiver, differential pressure switch, 250 g filter drier with 3/8" connection, and electrical connection box
• Available in single-phase or three-phase versions
• Types of hermetic compressors: Tecumseh, Aspera, or semi-hermetic Bitzer, Frascold
• Energy class: A, maximum electrical power consumption: 1500 W
• Upon request, and for an additional price, it can be equipped with liquid separator, oil separator, or heat recovery unit. It can also be delivered in a quiet, enclosed version.

Refrigeration Line:

• Length: 4 m
• Copper pipes: 3/8" and 5/8" (10 mm and 15 mm)
• Insulation for suction line, drain pipe, insulation jacketing, electrical cables, flare nuts, as well as insulation and heating for the drain pipe.

Condition: New.

Installation, start-up, and tests are not included in the price: 4,500 RON.

System warranty: 24 months.

Also available with a quiet, enclosed refrigeration unit for only 17,950 RON + VAT.
