Freezing System for a 135 Cubic Meter Freezer Room

Description

Achievable temperature inside the room: -18...-20°C

Components:

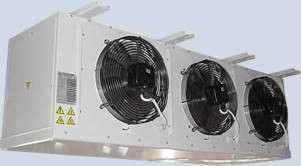

Freezer Air Cooler Unit

• Minimum cooling capacity: 14,500 W at -25°C evaporation temperature
• Dimensions: 2500 x 650 x 600 mm
• Equipped with minimum two electric fan motors, each with a 450 mm blade diameter
• Power supply: 230V / 50 Hz, 1440 RPM, EBM or an equivalent model
• Thermostatic expansion valve with Parker equalization, No. 10 orifice
• Ceiling mounting studs: 180 mm
• The air cooler includes four defrost heating elements, each with a minimum power output of 2,000 W.

Control Panel

• Available in either metal or ABS (upon request)
• Eliwell controller from the IDplus 9xx series
• Equipped with 40 A relays/contactors
• Features overvoltage, overcurrent, phase loss, and phase sequence protection (for three-phase units)
• Includes two NTC sensors for monitoring room and coil temperature (defrost and ventilation control).

Condensing Unit

• Equipped with a hermetic compressor with a minimum cooling capacity of 12,500 W at -25°C refrigerant temperature
• Includes an oversized air-cooled condenser, minimum 12-liter liquid receiver, differential pressure switch, 650 g filter drier with 7/8" connections, and an electrical connection box
• Available in a three-phase configuration
• Compressor types: Copeland Scroll or semi-hermetic Frascold
• Energy efficiency class: A
• Maximum power consumption: 9,500 W.
• Upon request, it can be equipped with a liquid separator, oil separator, or heat recovery unit at an additional cost.

Refrigeration Line:

• 4 meters of copper pipes 5/8" and 1" (16 mm and 28 mm)
• Includes suction line insulation, drainage pipe, jacketing, electrical cables, flare nuts, heating element, and insulation for the drain pipe.

Condition: All components are new.

The price does not include delivery, installation, commissioning, or tests.

System warranty: 24 months.

Installation, commissioning, and testing services are available at an additional cost of 8,350 RON + VAT.

Due to the broad operating pressure range of the Bristol and Copeland compressors, this system can serve a refrigerattion room of up to 300 cubic meters.

Also available with a refurbished compressor for only 31,850 RON + VAT, with a 12-month warranty.
