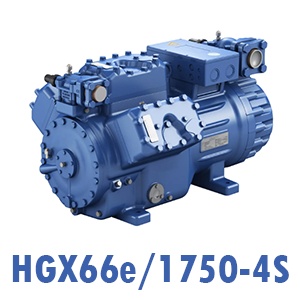

Freezer Compressor max. 550 m³ | BOCK HGX66e/1750-4S
RON 55,950.00
(VAT included.)
Delivery costs are not included.
How can we help you?
SKU
HGX66E1750S
Categories
Weight
282 kg
Brand
Voltage
Three Phase 380V
Description
BOCK HGX66e/1750-4S compressor for condensing units used in cold rooms and freezer rooms.
Compressor specifications:
- Electric motor power: 50 HP
- Maximum electrical power input: 30 kW
- Power supply: 400V / 50 Hz
- Displacement: 152.2 m³/h
Cooling capacity for freezing applications: 45,700 W at -25°C evaporating temperature.
Cooling capacity for refrigeration applications: 89,100 W at -10°C evaporating temperature and 40°C condensing temperature.
Refrigerants: R134A, R407A/C/F, R422D, R404A, R507
Discharge connection: 42 mm
Suction connection: 54 mm
Rated operating current: 62.1 A, Y/YY
Applications:
- Freezer rooms up to 550 m³
- Cold rooms up to 950 m³
Condition: New
Warranty: 24 months subject to having a commissioning report filled out by the refrigeration technician who carries out the installation.
