Freezer Compressor max. 500 m³ | BOCK HGX66e/1540-4
RON 52,750.00
(VAT included.)
Delivery costs are not included.
How can we help you?
SKU
HGX66E1540
Categories
Weight
280 kg
Brand
Voltage
Three Phase 380V
Description

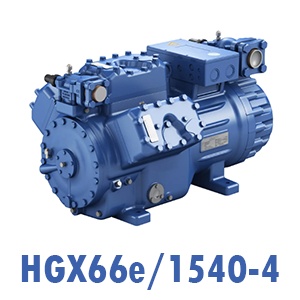

BOCK HGX66e/1540-4 compressor for condensing units used in cold rooms and freezer rooms.
Specifications:
- Electric motor power: 36 HP
- Maximum electrical power input: 30 kW
- Power supply: 400V / 50 Hz
- Displacement: 140 m³/h
Cooling capacity for freezing applications: 39,600 W at -25°C evaporating temperature.
Cooling capacity for refrigeration applications: 76,800 W at -10°C evaporating temperature and 40°C condensing temperature.
Refrigerants: R134A, R407A/C/F, R422D, R404A, R507
Discharge connection: 42 mm
Suction connection: 54 mm
Rated operating current: 62.1 A, Y/YY
Applications:
- Freezer storage warehouses up to 500 m³
- Cold storage warehouses up to 850 m³
Condition: New.
Warranty: 24 months subject to having a commissioning report filled out by the refrigeration technician who carries out the installation.
