Electronic Oil Level Regulator | ESK Schultze ERM6-0-BC
RON 3,450.00
(VAT included.)
Delivery costs are not included.
How can we help you?
Description

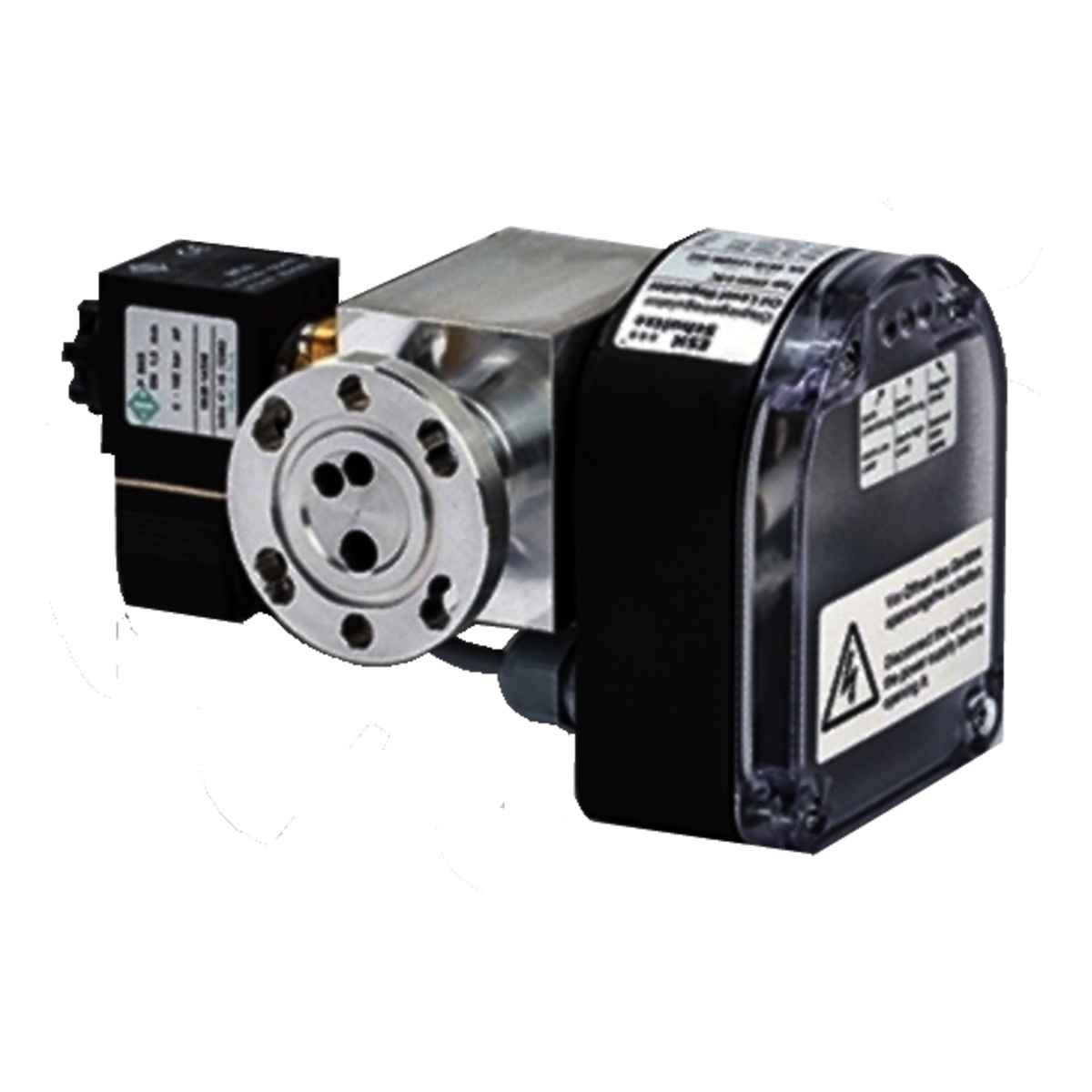

ESK Schultze ERM6-0-BC is an electronic oil level regulator designed to monitor oil level and automatically control the oil supply, ensuring proper compressor lubrication.
Power supply: 230 V AC, 50/60 Hz
Refrigerants: HFC/HCFC, R744, R290, R600a
Maximum refrigerant temperature: 85°C
Maximum ambient temperature: 45°C
Protection rating: IP54
Alarm relay output: 250 V AC / 5 A
Compressor connection: 3/4" flange with 3 holes
Oil supply connection: 7/16"-20 UNF
Maximum operating pressure: 60 bar
Allowable differential pressure for oil return: 1.5–100 bar
Maximum pressure in the oil supply line: 130 bar
Test pressure: 66 bar
