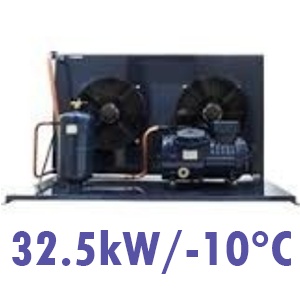

Dorin H1501CS Condensing Unit

Description

Dorin condensing unit with a capacity of 15 HP, equipped with a semi-hermetic compressor featuring 4 cylinders, and an airflow rate of 57 m³/h, 400V.

Maximum electrical power consumption: 15 kW

Refrigerants: R404A-R507A, R449A, R452A.

Components:

• Semi-hermetic compressor, 32,500W / -10°C
• Liquid receiver, 10 L
• Danfoss differential pressure switch
• Air-cooled condenser, 42,000 W

Also available in a version with tropicalized condenser.

Suitable for: 400 m³ cold rooms or 200 m³ freezer rooms.

Condition: New.

Warranty: 24 months.

Installation and delivery services are available at an additional cost.

The condensing unit is made up of a compressor, condenser, chassis, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application it serves. This unit is a component of the refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and automation panel, it can cool a room or application.
