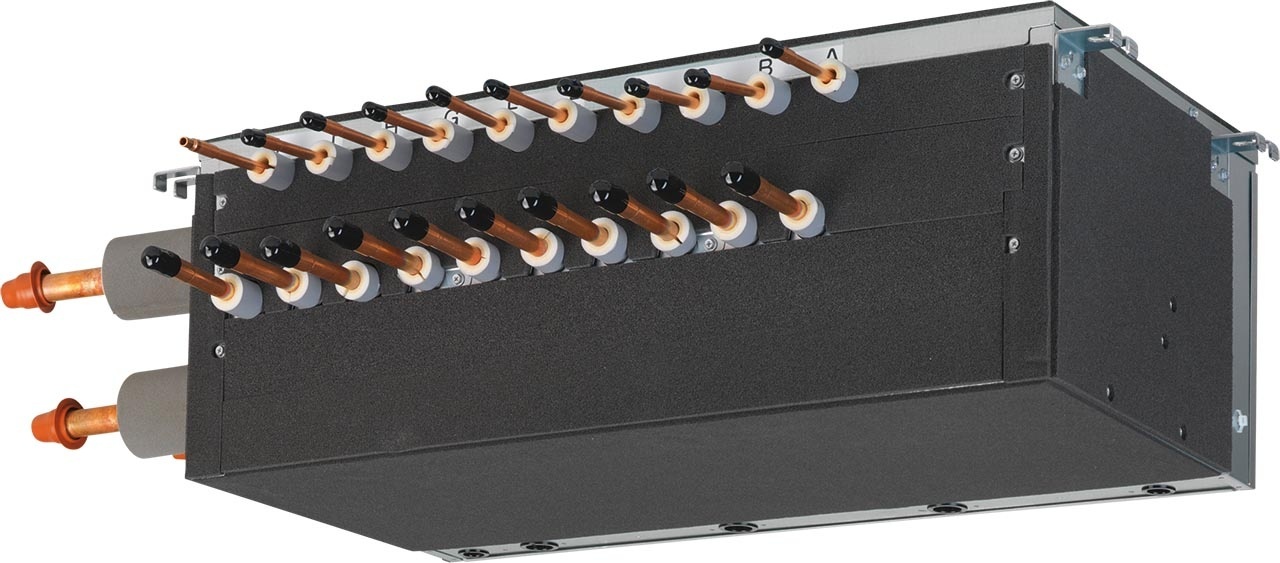

Daikin BS8Q14AV1 Multi Branch Selector Unit for Air Conditioning
RON 21,162.90
(VAT included.)
Delivery costs are not included.
How can we help you?
Description
Daikin BS8Q14AV1 is a Multi BS (Branch Selector) unit designed for VRV IV heat recovery systems. It distributes refrigerant to indoor units and allows the connection of up to 40 indoor units across its 8 available branch outlets. This enables simultaneous heating and cooling across different zones, based on individual space requirements.
Number of connections: 8
Maximum number of indoor units: 40
Maximum units per connection: 5
Power supply: 220–240 V, single-phase, 50 Hz
Dimensions: 298 × 580 × 430 mm
Refrigerant: R410A
Total number of connected units: max. 750
Capacity per connection: max. 140
Outdoor connections: liquid Ø12.7 mm (Ø15.9), HP/LP gas Ø19.1 mm (Ø22.2, Ø28.6), suction Ø28.6 mm
Indoor connections: liquid Ø6.4 mm (Ø9.5), gas Ø12.7 mm (Ø15.9)
