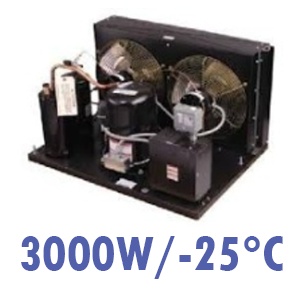

Condensing Unit for Freezing Applications 3000W / -25°C

Description

Condensing unit designed for freezing applications, equipped with a Copeland, Tecumseh, or Danfoss compressor.

Cooling capacity: 3150W at -25°C.

Operates with refrigerants: R404A or R507A.

Equipped with a two-cylinder or scroll compressor, a condenser with two fans, a 6-liter receiver tank, and a differential pressure switch.

High-efficiency energy class.

Upon request and at an additional cost, the unit can be equipped with a liquid separator and a heat recovery exchanger.

Warranty: 24 months

We offer free delivery and installation in Bucharest and Ilfov.

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and receiver tank, and it is installed outside the refrigerated space it serves. This unit is a component of the refrigeration system and can achieve proper cooling of the space/application only when combined with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
