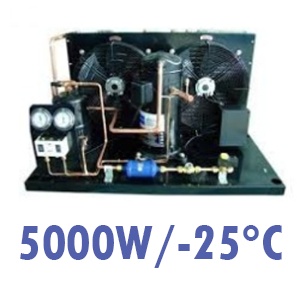

Condensing Unit for Freezer Rooms 5000W / -25°C / 400V / R404A

Description

Copeland Scroll Compressor ZB38 KCE.

Power Supply: 400V, 50 Hz.

Input: 10 A.

Refrigerants: R404A, R507.

This condensing unit features a hermetic scroll compressor designed for freezing applications (5500W / -23°C).

Equipped with a differential pressure switch, a receiver tank with a capacity between 6 to 9 liters, and an electrical connection box.

Suitable for:

• Freezer rooms with a volume of up to 50 cubic meters
• Cold rooms of up to 100 cubic meters.

Condition: New

Warranty: 24 months.

Installation services available for an additional fee.

Optional features: Oil trap, Recovery heat exchanger, Electronic variable speed for condensing fan.

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and receiver tank, and it is installed outside the refrigerated space it serves. This unit is a component of the refrigeration system, and only when combined with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel can it achieve proper cooling of the space/application.
