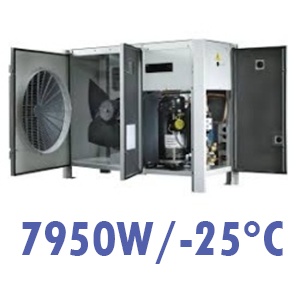

Condensing Unit 7950W / -25°C / 400V / R404A

Description

This condensing unit features a Copeland Scroll ZB58 compressor designed for freezing systems (7950W / -25°C).

Suitable for:

• Freezer rooms of up to 85 cubic meters
• Refrigeration rooms of up to 165 cubic meters.

Equipped with a differential pressure switch, a liquid receiver with a capacity between 6 and 10 liters, and an electrical connection box.

Power supply: 400V, 50Hz

Maximum Input: 17.5 A.

It operates with R404A and R507 refrigerants, using POE oil.

Condition: All components are new.

Warranty: 24 months.

Installation and delivery of the unit are available at an additional cost (1,950 RON + VAT).

The materials and accessories required for installation are not included in the installation price.

Optional features: Oil trap, Recovery heat exchanger, Electronic variable speed for condensing fan.

It is also available in a quiet, cased version (+1,890 RON)

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is mounted outside the refrigerated chamber or application it serves. This unit is a component of the refrigeration system and can achieve cooling of a chamber or application only when used together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and automation panel.
