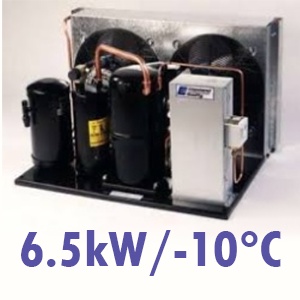

Condensing Unit 6.5kW

Description

Copeland Scroll condensing unit with a cooling capacity of 6.5kW / -10°C, 4HP, three-phase.

This unit features a hermetic compressor designed for refrigeration systems and is suitable for cold rooms with a maximum volume of 70 m³.

Features: differential pressure switch, a 4-liter liquid receiver, and an electrical connection box.

Power supply: 400V, 50Hz.

Maximum input current: 7.5A.

Operates with refrigerants R404A or R507 and uses POE oil.

Condition: New

Warranty: 24 months.

Installation and delivery of the unit is available at an additional cost. (1900 RON + VAT)

The price does not include the installation of other necessary materials for start-up.

The unit can be optionally equipped with: oil trap, heat recovery exchanger, and electronic variable speed control for the condensing fan.

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is mounted outside the refrigerated room or application it serves. This unit is a component of the refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and automation panel, it can cool a chamber or application.

Model: Refrigeration condensing unit 6500W / -10°C / 400V / R404A.
