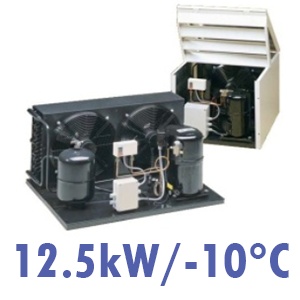

Condensing Unit 12.5kW / -10°C / 400V / R404A

Description

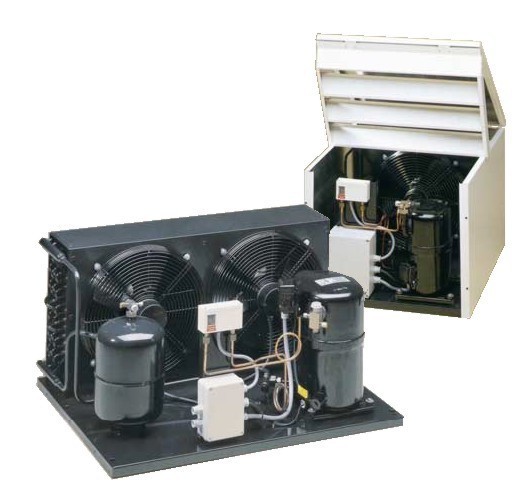

Tecumseh condensing unit.

A condensing unit equipped with a scroll compressor for refrigeration systems (12,500W / -10°C) or freezing applications (6,000W / -25°C). It features a 15kW condenser, two 400mm diameter fans, and an airflow rate of 7,000 m³/h.

Operates with refrigerants in the R404A / R507A category and is equipped with a 4L receiver tank and differential pressure switch.

Specifications: 400V / 50Hz power supply, 23.6m³/h flow rate, and a maximum power consumption of 5,500W.

Upon request, the unit can be cased to provide weather protection and lower noise levels.

Condition: New.

Warranty: 24 months.

Installation and delivery are available at an additional cost.

Installation labor: 1,450 lei + VAT.

The condensing unit includes a chassis, compressor, condenser, electrical connection box, pressure switch, and receiver tank, and it is installed outside the refrigerated space it serves. This unit is a component of the refrigeration system and, only when combined with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, can it properly cool a space/application.
