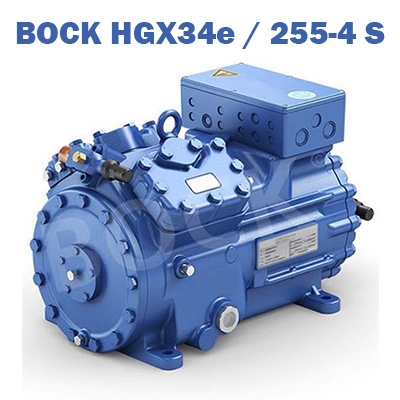

Bock HGX34P/255-4S Semi-Hermetic Compressor
RON 12,991.26
(VAT included.)
Delivery costs are not included.
How can we help you?
SKU
BOCK2554S
Categories
Weight
97 kg
Brand
Voltage
Three Phase 380V
Description
The Bock HGX34P/255-4S is a semi-hermetic 4-cylinder, 6 HP compressor, designed for refrigeration and freezing applications.
Power Supply: 400V / 50Hz.
Displacement: 22.1 m³/h.
Cooling Capacity:
- Freezing applications: 5,950 W at -25°C with a condensing temperature of 40°C.
- Refrigeration applications: 11,900 W at -10°C with a condensing temperature of 40°C.
Operates with refrigerants: R134A, R407A/C/F, R422D, R404A, R507, R449A, and R452.
Connection Sizes:
- Discharge port: 22 mm
- Suction port: 28 mm.
Rated Operating Current: 12.2A, Y/YY.
Suitable for:
- Freezer rooms up to 85 m³
- Cold rooms up to 150 m³.
Condition: New.
Made in Germany.
Warranty: 24 months subject to having a commissioning report filled out by a qualified technician.
25% less power consumption due to enhanced energy efficiency.
Technical datasheet: https://bock.de/en/products/stationary-applications/semi-hermetic-compressors-gas-cooled-hg-series
