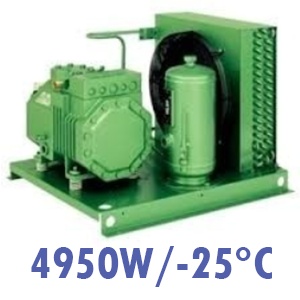

Bitzer LH44 4950W/-25°C Condensing Unit
Description
The Bitzer condensing unit is equipped with a semi-hermetic 2-cylinder compressor, with a displacement of 16.24 m³/h, operating at 400V.
Electrical Power Consumption: 3.5 kW.
Compatible with refrigerants: R407A/F, R404A, R507A, R448A, and R449A.
Components:
- Semi-hermetic compressor Bitzer Octagon 2CES-4Y
- Liquid receiver: 6 L
- Dual pressure switch: Emerson
- Air-cooled condenser with a capacity of 9,500 W
The liquid separator and oil separator can be installed upon request at an additional cost.
Also available in a version with tropicalized condenser.
Suitable for:
- cold rooms up to 100 m³
- freezer rooms up to 60 m³
Condition: New.
Warranty: 24 months.
We can provide installation and delivery of the unit at an additional cost.
The condensing unit is made up of a compressor, chassis, condenser, junction box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application. This unit is a component of the refrigeration system and can only cool a room or application when used in combination with the evaporator (air cooler, plate heat exchanger, etc.), the expansion valve, filter, and control panel.
