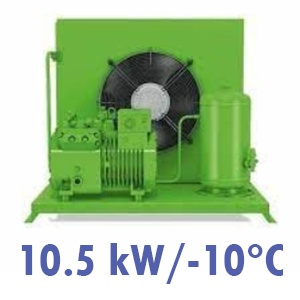

Bitzer Condensing Unit LH64 10.5 kW/-10°C

Description

This Bitzer rcondensing unit is equipped with a semi-hermetic compressor with four cylinders, with a displacement of 18.5 m³/h, and operates at 400V.

Electrical Power Consumption: 4.5 kW.

It is compatible with the following refrigerants: R407A/F, R404A, R507A, R448A, and R449A.

Components:

• Semi-hermetic Bitzer compressor Octagon 4FES-5Y
• Liquid receiver 7.5 L
• Dual pressure switch Emerson
• Air-cooled Condenser Capacity: 11.5 kW

The liquid separator and oil separator are available upon request at an additional cost.

Also available in a version with tropicalized condenser.

Suitable for:

• Cold rooms up to 125 m³
• Freezer rooms up to 70 m³

Condition: New.

Warranty: 24 months.

We can provide installation and delivery of the unit for an additional fee.

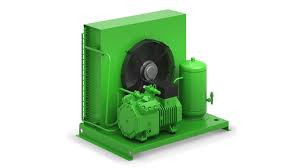

The condensing unit consists of a compressor, chassis, condenser, junction box, pressure switch, and liquid receiver, and it is installed outside the refrigerated enclosure or application. This unit is a component of the refrigeration system and can only cool a room or application when used in combination with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
